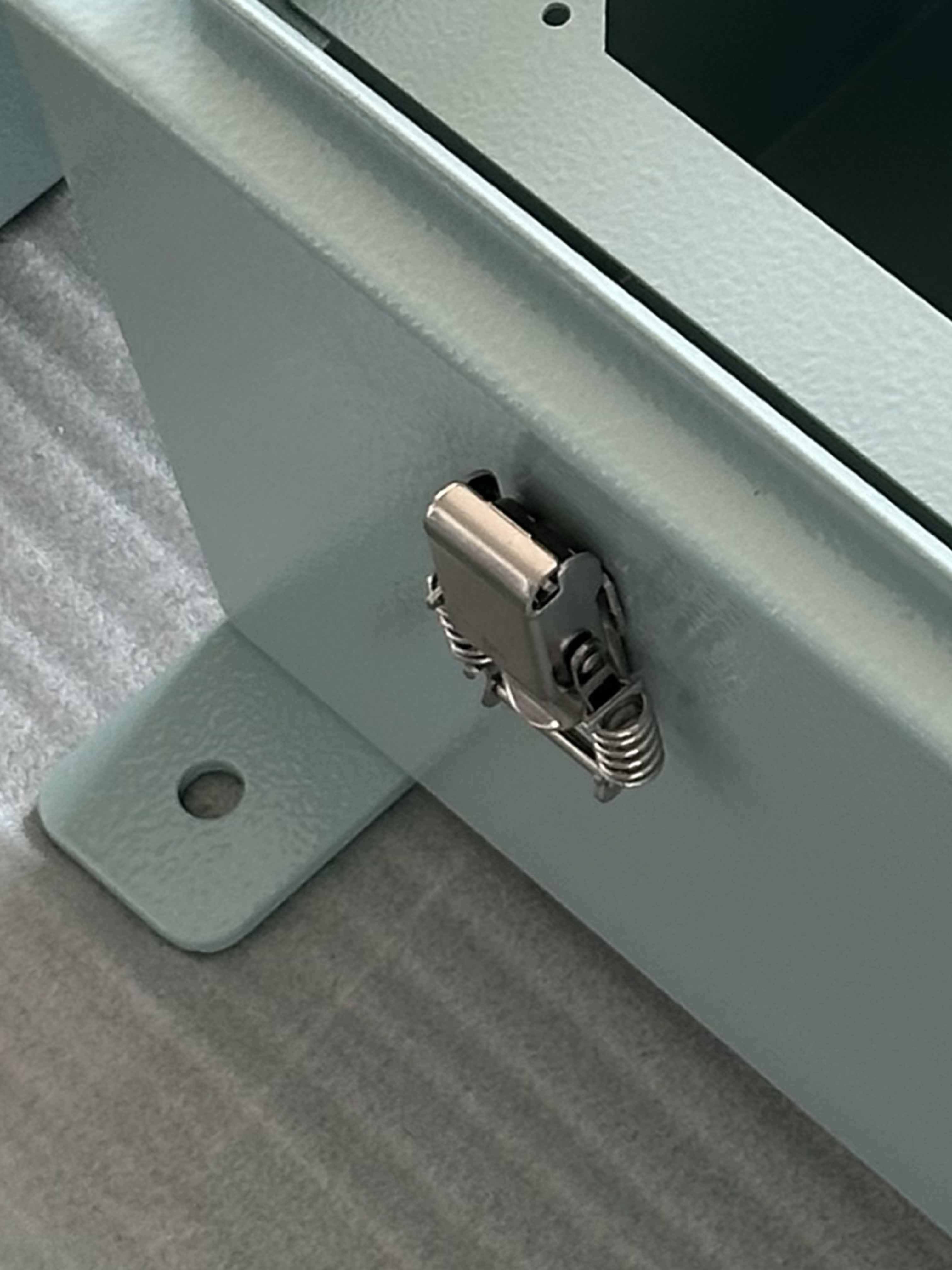

Hasp Lock：Forged from high-quality metal materials, it boasts strong resistance to deformation and rust, enabling long-term use.
Waterproof Galvanized Steel Electrical Box
Material：Galvanized Steel
Thickness：2mm
IP Rating：IP65
Appearance：Powder Coating with RAL 7.5 b
Details
Product Highlights
● The product is made of high-quality galvanized steel, which not only has extremely strong rust resistance but also excellent deformation resistance and impact performance.
● The door panel of the electrical box is equipped with a rubber sealing strip. When the door is closed, it can fit tightly with the door frame to block rainwater and dust, ensuring that the internal electrical components can operate safely in humid and outdoor environments and reducing the risk of short circuits and malfunctions.
Product Parameters
| Parameters | Specification | Customized Options |
| Product Model | INNO-E5 | Can be numbered according to customer project requirements |
| Brand/Manufacturer | Yinlu | — |
| Overall Dimensions | 700×700×300 (mm) 350×350×250 (mm) | Customizable dimensions according to specific project requirements |
| Enclosure Material | Galvanized Steel | Supports multiple materials: stainless steel, galvanized steel, carbon steel, cold-rolled steel, etc., and specified material grades are available |
| Material Thickness | 2mm | Options: 1mm, 1.5mm, 2mm, 2.5mm or other thicknesses |
| Color | RAL 7.5 b | Customizable RAL color card (color number required) |
| Surface Treatment | Powder Coating | Multiple surface treatment processes available: electroplating, anodizing, painting, brushing, polishing, powder spraying, etc. |
| Protection Rating (IP) | IP65 | Customizable higher protection ratings (e.g., IP65) to suit different environmental requirements. |
| Installation Method | Wall Mounted | Multiple installation methods available: wall-mounted, floor-mounted, embedded, rail-mounted, etc. |
| Waterproof Sealing Ring Material | EPDM Rubber | Sealing ring material can be replaced (e.g., fluororubber for high-temperature scenarios) |
Product Details

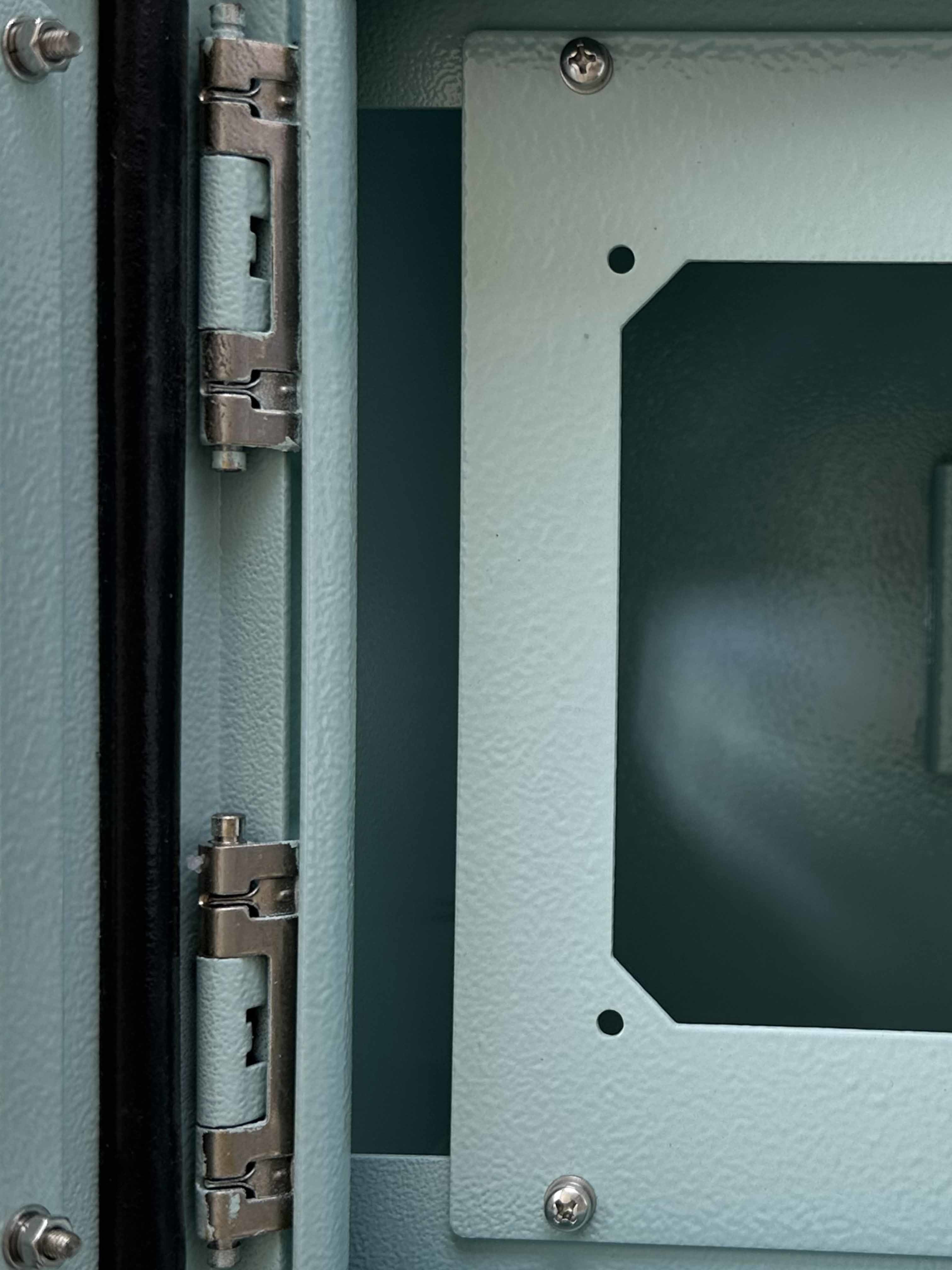

Hinges：It supports multi-angle opening/closing and limiting functions, with excellent corrosion resistance and wear resistance.

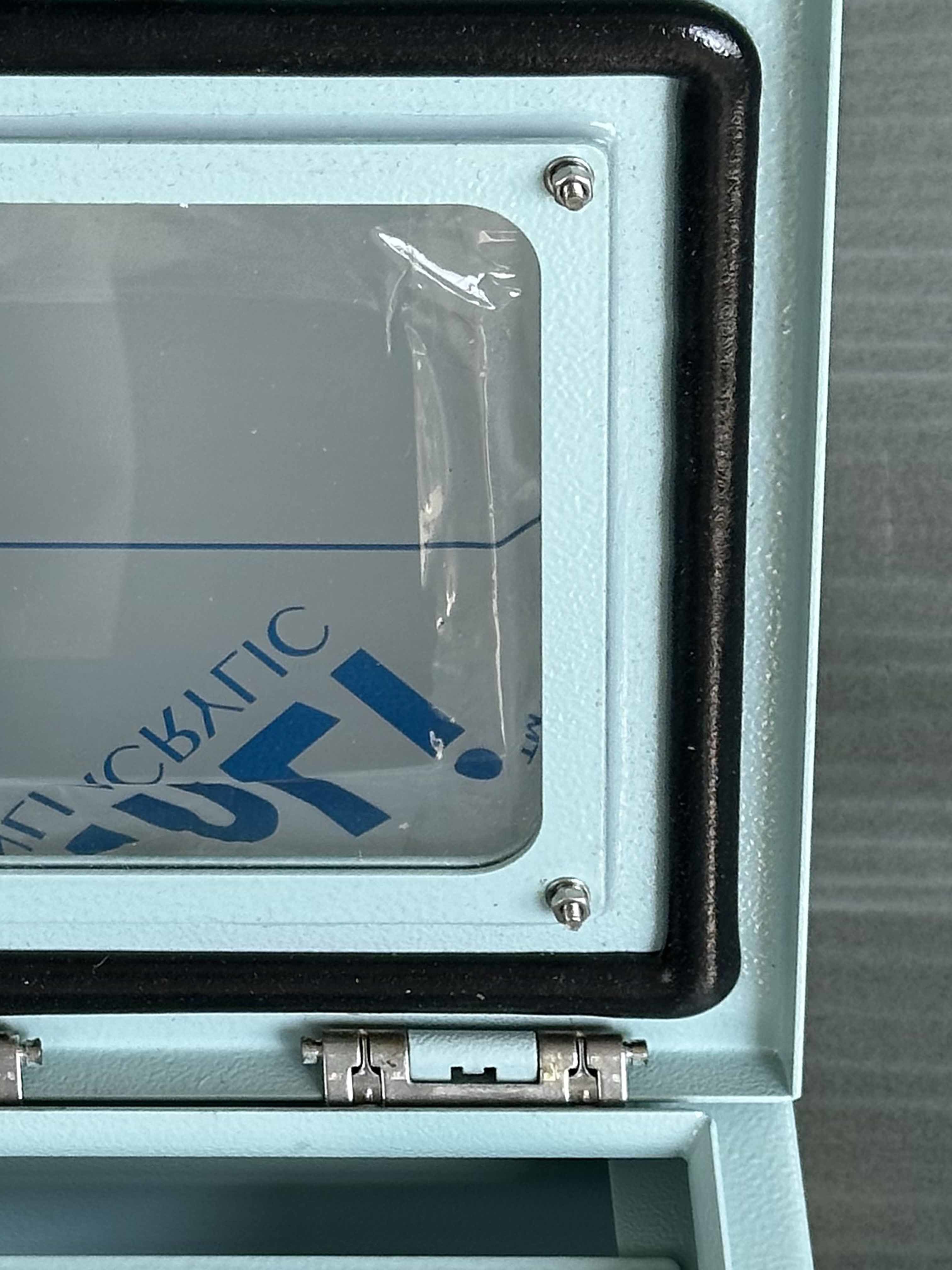

Seal：The sealing rubber strip fits tightly with the door frame, providing high water and dust resistance.
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Reviews
FAQ
A:
Our services cover full-range manufacturing processes for sheet metal products, including laser cutting, bending, welding, surface treatment, assembly, and testing.
A:
We process mainstream metal sheets such as galvanized steel, cold-rolled steel, stainless steel, and aluminum alloy, accommodating customized thickness requirements from 0.5mm to 10mm.
A:
We offer processes like powder coating, painting, electroplating, anodizing, brushing, and sandblasting. Leveraging our expertise, we recommend suitable surface treatments based on the specific application environment.
A:
Yes, Yinlu supports non-standard customization and production based on provided drawings. Our engineers will optimize the structure during secondary design to deliver more cost-effective solutions.
A:
Our products are used in multiple sectors, including automation equipment, new energy, medical, and telecommunications. Key products include PLC control panels, electrical cabinets, charging pile enclosures, and medical equipment enclosures.
A:
Absolutely. We offer one-stop ancillary services such as silkscreen printing (logos/identifications), assembly (including electrical components), and packaging (customized cartons/wooden crates).
