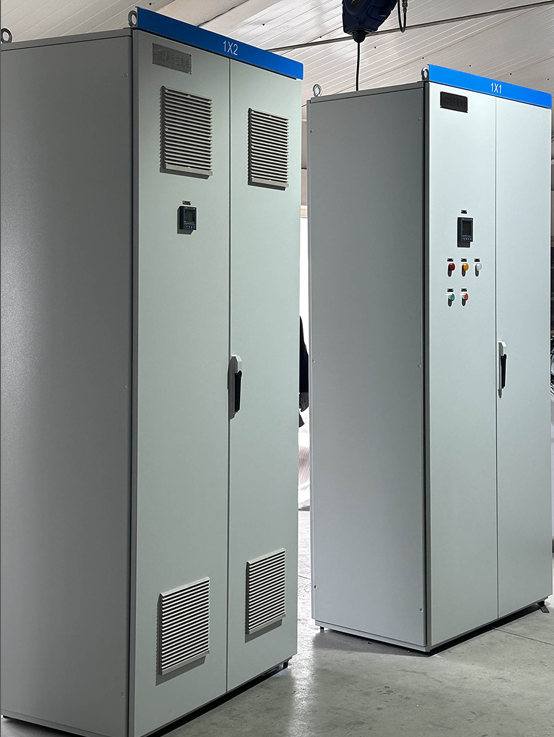

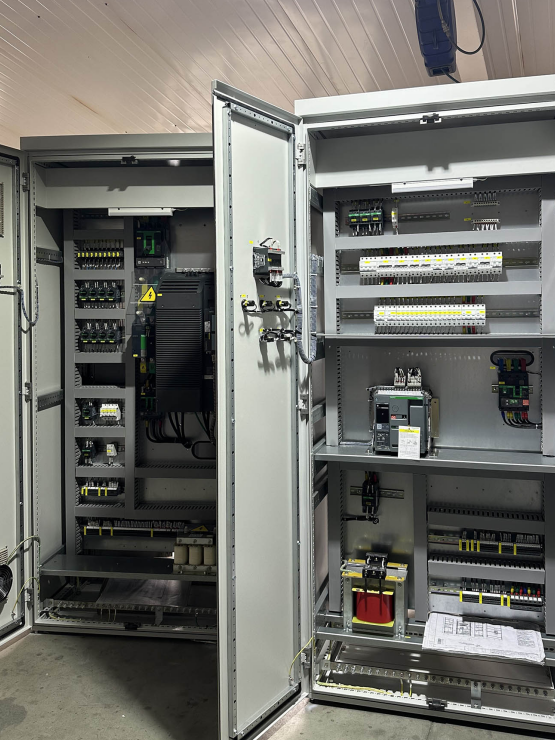

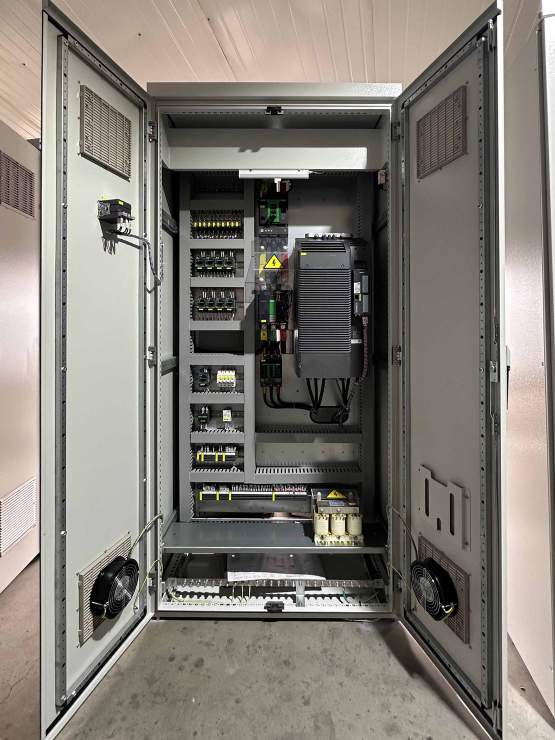

VFD Control Panel for Water Pumping Station
Details
Product Features
● Multiple control modes
● Adaptable to various application fields, such as water supply systems, wastewater treatment, HVAC systems, agricultural irrigation, etc.
● Modular design supports flexible expansion, facilitating system upgrades and maintenance.
● Supports variable frequency drive (VFD) to optimize water pump speed and reduce energy consumption.
● Can integrate sensors and other peripherals to build a complete water pump control system.
 |
 |
 |
Product Parameters
| Parameter | Specification |
| Application Fields | Water supply, wastewater treatment, HVAC (Heating, Ventilation, and Air Conditioning), irrigation systems, etc. |
| Manual: Local start/stop buttons | |
| Control Modes | Automatic: PLC (Programmable Logic Controller)/microprocessor |
| Remote: Monitoring via SCADA (Supervisory Control and Data Acquisition), IoT (Internet of Things), HMI (Human-Machine Interface), or mobile APP | |
| Communication Interfaces | RS485, Modbus RTU |
| Electrical Standards | IEC 61439 (Low-voltage switchgear and controlgear assemblies), UL 508A (Standard for Industrial Control Equipment) |
| Materials | Galvanized steel, carbon steel, stainless steel, aluminum alloy (optional) |
| Protection Rating | IP55 / customizable to higher protection levels |
| Dimensions | 600×800×200 mm / support customized dimensions |
| Installation Method | Floor Standing |
| Structural Design | Modular design |
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Reviews
FAQ
Our services cover full-range manufacturing processes for sheet metal products, including laser cutting, bending, welding, surface treatment, assembly, and testing.
We process mainstream metal sheets such as galvanized steel, cold-rolled steel, stainless steel, and aluminum alloy, accommodating customized thickness requirements from 0.5mm to 10mm.
We offer processes like powder coating, painting, electroplating, anodizing, brushing, and sandblasting. Leveraging our expertise, we recommend suitable surface treatments based on the specific application environment.
Yes, Yinlu supports non-standard customization and production based on provided drawings. Our engineers will optimize the structure during secondary design to deliver more cost-effective solutions.
Our products are used in multiple sectors, including automation equipment, new energy, medical, and telecommunications. Key products include PLC control panels, electrical cabinets, charging pile enclosures, and medical equipment enclosures.
Absolutely. We offer one-stop ancillary services such as silkscreen printing (logos/identifications), assembly (including electrical components), and packaging (customized cartons/wooden crates).
