Shock-Resistant Electrical Enclosure for Marine Control Console
Details
Product Features

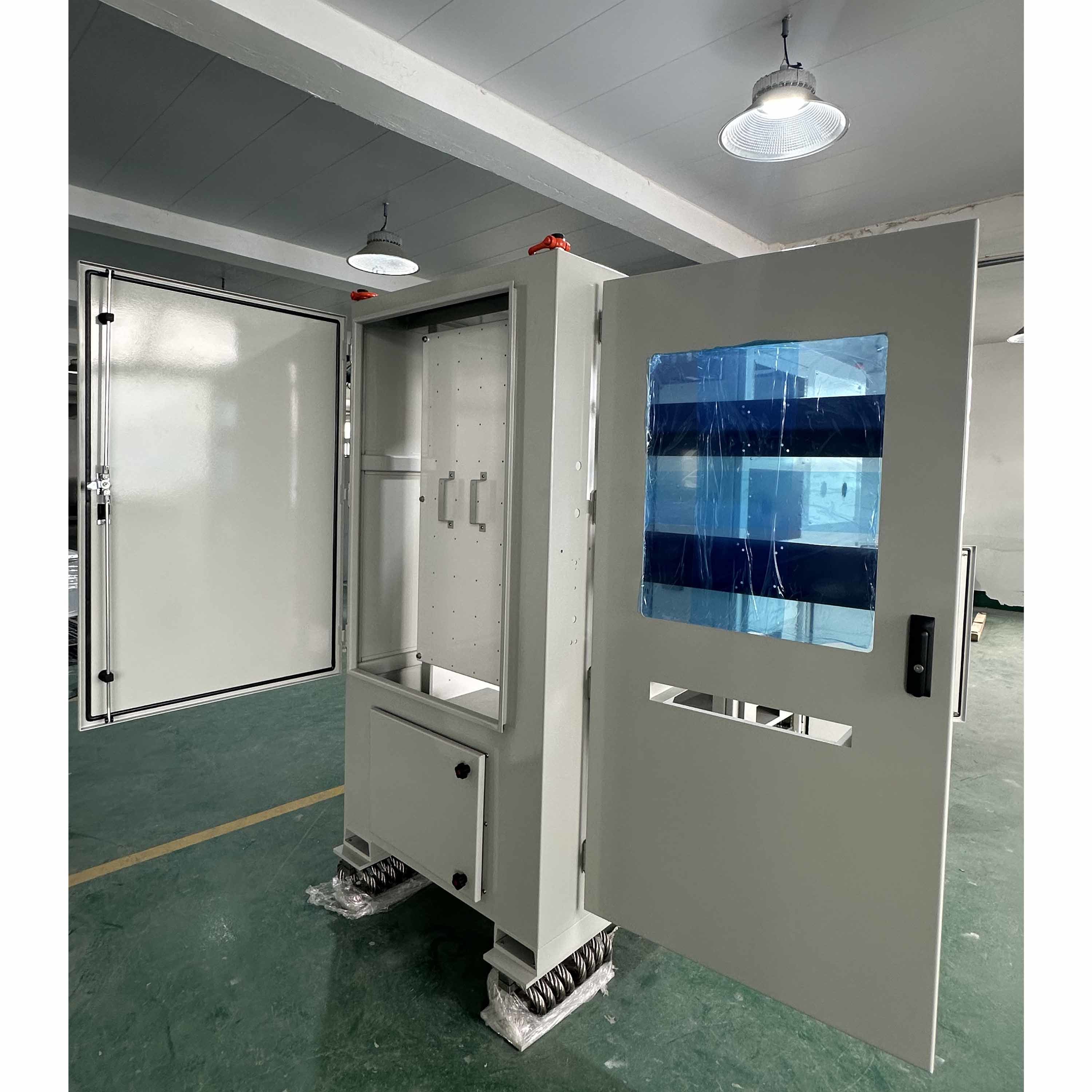

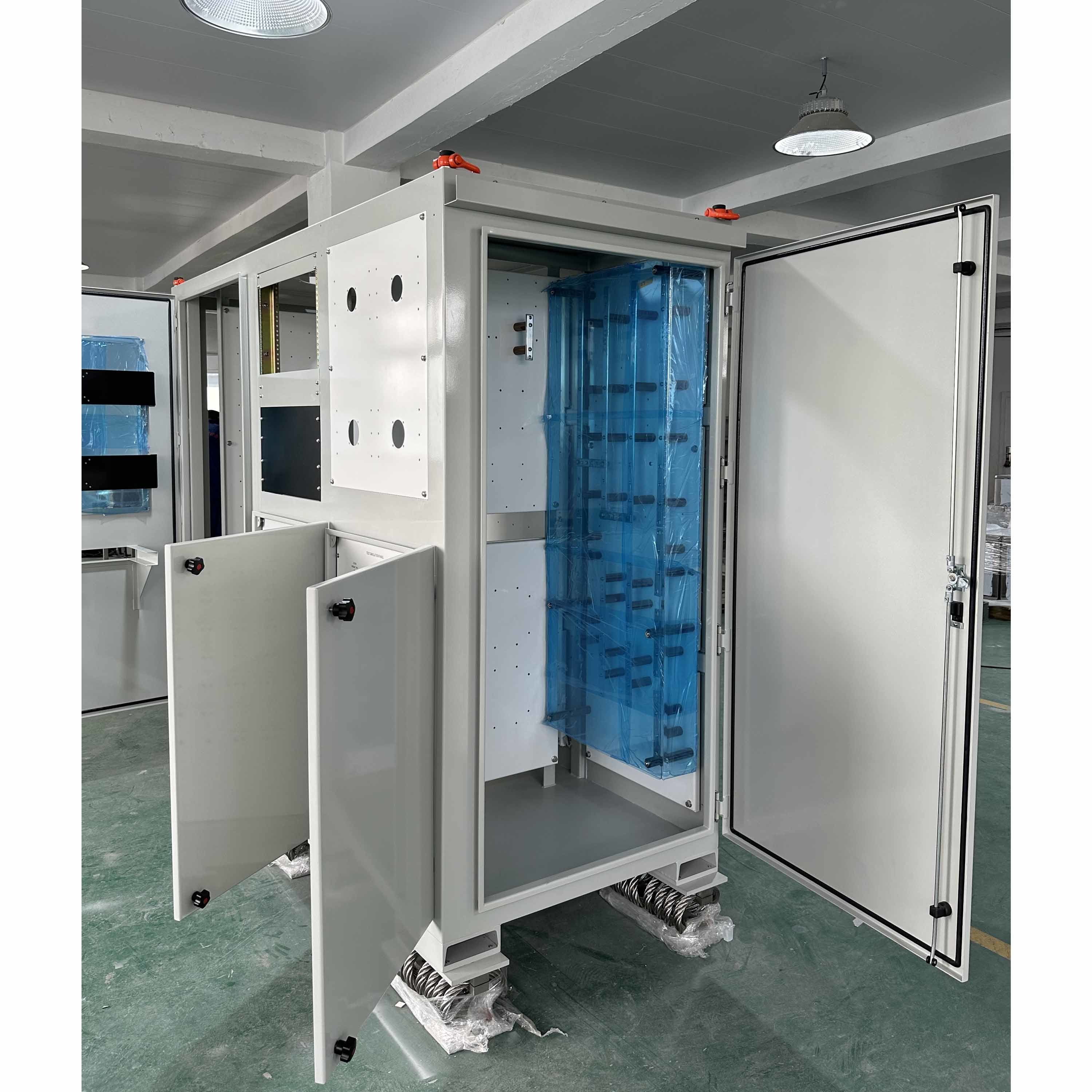

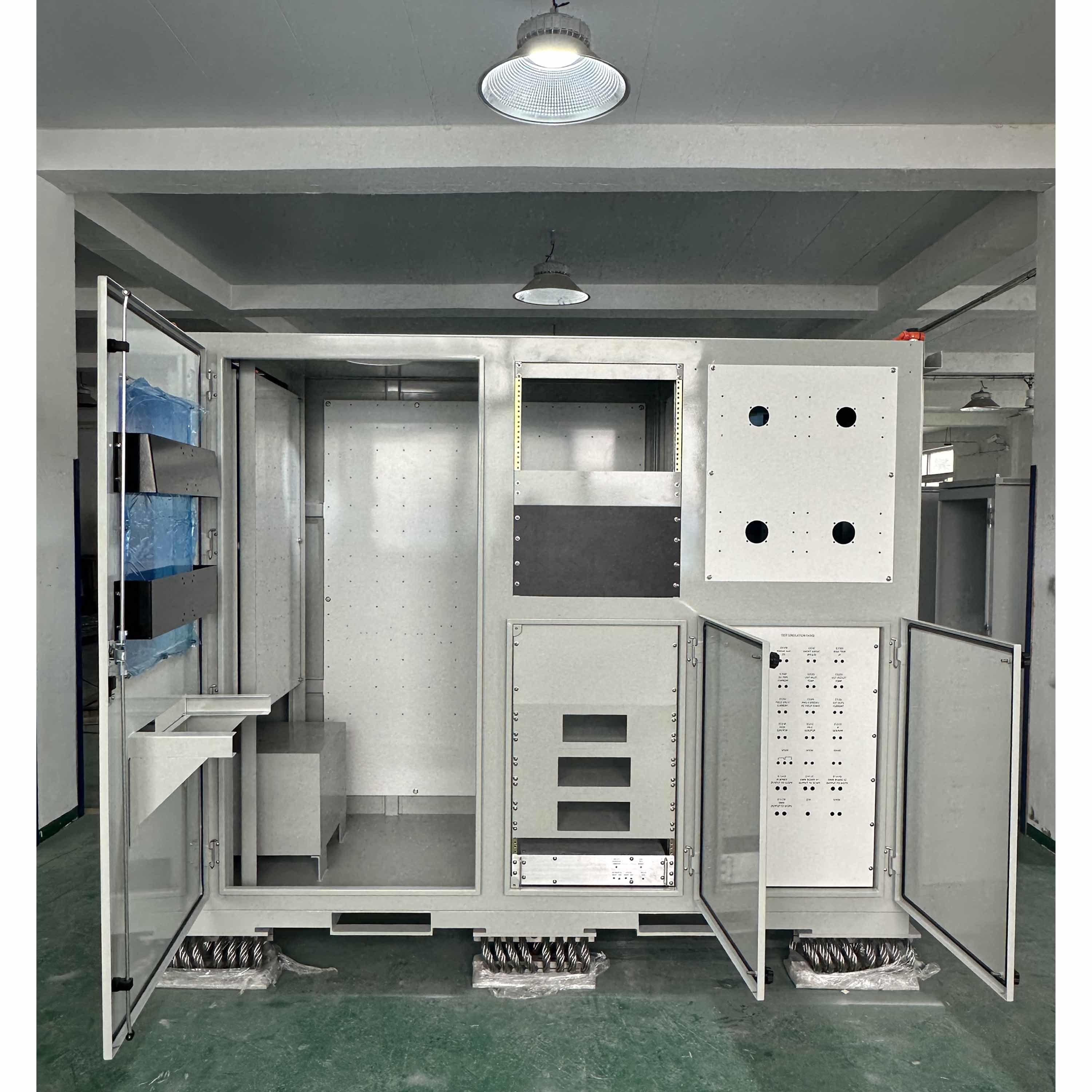

● The bottom of the console is equipped with shock absorbers, which comply with marine vibration standards and effectively prevent electrical components from being damaged due to vibration;
● All door panel joints adopt sealing strips, which fit tightly when closed to meet the protection level requirements;
● Internal reserved guide rails and brackets facilitate the fixing of electrical components;
●The back panel adopts universal mounting holes, which are compatible with the standardized installation of marine consoles, facilitating quick installation and maintenance.
 |
 |
 |
Product Parameters
| Parameters | Specification | Customized Options |
| Product Model | INNO-CS1 | Can be numbered according to customer project requirements |
| Brand/Manufacturer | Yinlu | — |
| Overall Dimensions | 1800×750×2100 (mm) | Customizable dimensions according to specific project requirements |
| Enclosure Material | Galvanized Steel | Supports multiple materials: stainless steel, galvanized steel, carbon steel, cold-rolled steel, etc., and specified material grades are available |
| Material Thickness | 2mm | Options: 1mm, 1.5mm, 2mm, 2.5mm or other thicknesses |
| Color | RAL7035 | Customizable RAL color card (color number required) |
| Surface Treatment | Powder coating | Multiple surface treatment processes available: electroplating, anodizing, painting, brushing, polishing, powder spraying, etc. |
| Protection Rating (IP) | IP65 | Customizable higher protection ratings (e.g., IP65) to suit different environmental requirements. |
| Operating Temperature Range | -20℃~+60℃ | Customizable wide temperature range (e.g., -40℃~+80℃, requires additional heat dissipation/insulation design) |
| Humidity Range | ≤95% RH (non-condensing) | — |
| Installation Method | Floor-Standing | Multiple installation methods available: wall-mounted, floor-mounted, embedded, rail-mounted, etc. |
| Electromagnetic Shielding | Shielding effectiveness ≥60dB | Can be enhanced to ≥80dB (requires additional shielding layer design) |
| Transparent Window | Acrylic material | Customizable window size, position, and explosion-proof windows available |
| Waterproof Sealing Ring Material | EPDM rubber | Sealing ring material can be replaced (e.g., fluororubber for high-temperature scenarios) |
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Reviews
FAQ
Our services cover full-range manufacturing processes for sheet metal products, including laser cutting, bending, welding, surface treatment, assembly, and testing.
We process mainstream metal sheets such as galvanized steel, cold-rolled steel, stainless steel, and aluminum alloy, accommodating customized thickness requirements from 0.5mm to 10mm.
We offer processes like powder coating, painting, electroplating, anodizing, brushing, and sandblasting. Leveraging our expertise, we recommend suitable surface treatments based on the specific application environment.
Yes, Yinlu supports non-standard customization and production based on provided drawings. Our engineers will optimize the structure during secondary design to deliver more cost-effective solutions.
Our products are used in multiple sectors, including automation equipment, new energy, medical, and telecommunications. Key products include PLC control panels, electrical cabinets, charging pile enclosures, and medical equipment enclosures.
Absolutely. We offer one-stop ancillary services such as silkscreen printing (logos/identifications), assembly (including electrical components), and packaging (customized cartons/wooden crates).
