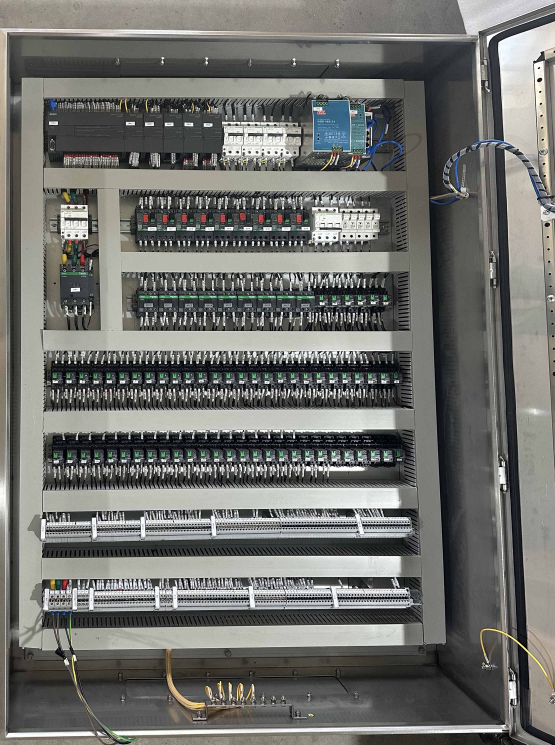

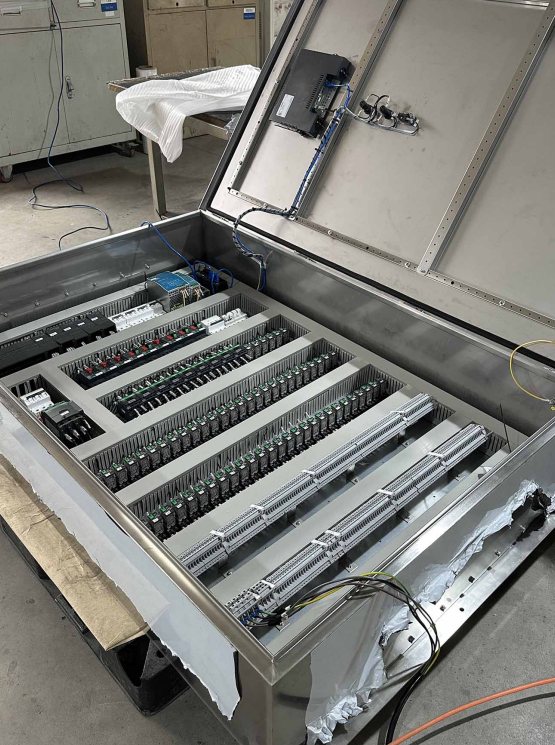

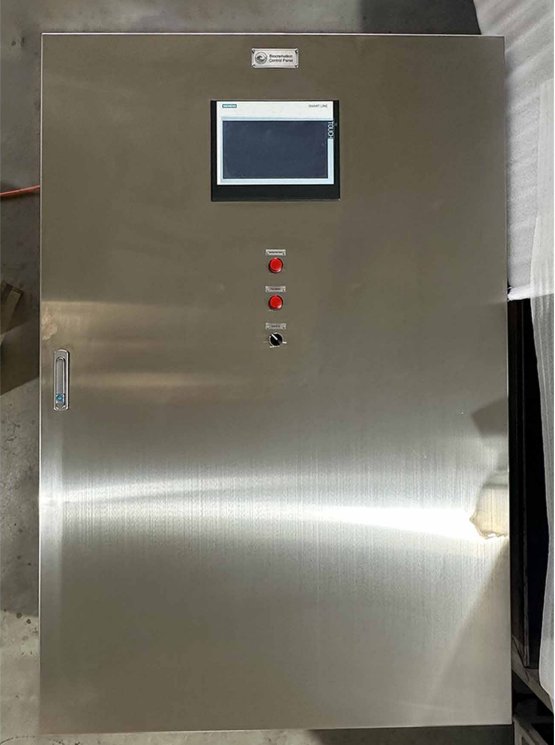

Servo Variable Frequency Motor Control Board
Details
Product Features
● Standardized Installation
Adopts 35mm DIN rail and modular design.
● High Reliability
The standard protection rating is IP55, and can be customized to IP65 and above according to specific project requirements.
● Flexible Expansion
Supports hot-swappable expansion modules, allowing system upgrades without downtime and being compatible with future technological iterations.
● Multi-Brand Compatibility
Enables mixed networking of different PLC brands through protocol conversion modules, reducing equipment replacement costs.
 |
 |
 |
Product Parameters
| Parameter | Specification |
| Dimensions | 800×400×1200 mm |
| Installation Method | Wall Mounted |
| Protection Rating | IP55 (customizable to IP65 and above according to project requirements) |
| Structural Design | Modular Design |
| Expansion Capability | Number of Supportable Expansion Modules: Up to 8 modules |
| Maximum I/O Points: 1024 points | |
| Communication Interfaces/Protocols | Interface Types: Ethernet / RJ45, RS485 |
| Protocols: Modbus TCP, PROFINET, EtherCAT | |
| Electromagnetic Compatibility (EMC) | Compliant with EN 61000-6-2 (industrial environment immunity) and EN 61000-6-3 (emission standards) |
| Programming Languages | Ladder Diagram (LD), Structured Text (ST) |
| Programming Software: TIA Portal, GX Works3, etc. | |
| Industry Certifications | CE, UL, CSA, CCC |
| PLC Brand | Siemens |
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Reviews
FAQ
Our services cover full-range manufacturing processes for sheet metal products, including laser cutting, bending, welding, surface treatment, assembly, and testing.
We process mainstream metal sheets such as galvanized steel, cold-rolled steel, stainless steel, and aluminum alloy, accommodating customized thickness requirements from 0.5mm to 10mm.
We offer processes like powder coating, painting, electroplating, anodizing, brushing, and sandblasting. Leveraging our expertise, we recommend suitable surface treatments based on the specific application environment.
Yes, Yinlu supports non-standard customization and production based on provided drawings. Our engineers will optimize the structure during secondary design to deliver more cost-effective solutions.
Our products are used in multiple sectors, including automation equipment, new energy, medical, and telecommunications. Key products include PLC control panels, electrical cabinets, charging pile enclosures, and medical equipment enclosures.
Absolutely. We offer one-stop ancillary services such as silkscreen printing (logos/identifications), assembly (including electrical components), and packaging (customized cartons/wooden crates).
