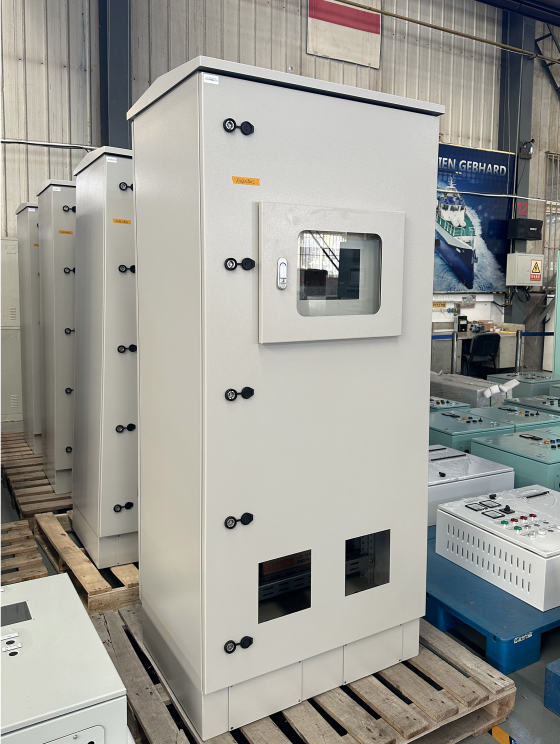

Outdoor Electrical Enclosure
Details
Product Features
● High adaptability
Supports customization of appearance dimensions, material, thickness, and surface treatment process according to specific electrical enclosure projects.
● Suitable for outdoor use
Cold-rolled steel plates with powder coating surface treatment enhance its rust and corrosion resistance, making it suitable for indoor and outdoor industrial environments.
● Enhanced protection
The basic protection level is IP55, but it can be upgraded to IP67 according to specific usage scenarios.
● Easy observation
The electrical enclosure door is equipped with an acrylic transparent window, whose position and size can be customized to meet special safety observation needs.
● Good sealing effect
Standard EPDM rubber seals are used for the sealing material on the cabinet door panels. For high-temperature scenarios, they can be replaced with fluoro rubber to improve aging resistance.
 |
 |
 |
Product Parameters
| Parameters | Specification | Customized Options |
| Product Model | INNO-E1 | Can be numbered according to customer project requirements |
| Brand/Manufacturer | Yinlu | — |
| Overall Dimensions | 900×900×2100 (mm) | Customizable dimensions according to specific project requirements |
| Enclosure Material | Cold-rolled steel | Supports multiple materials: stainless steel, galvanized steel, carbon steel, cold-rolled steel, etc., and specified material grades are available |
| Material Thickness | 2mm | Options: 1mm, 1.5mm, 2mm, 2.5mm or other thicknesses |
| Color | RAL7035 | Customizable RAL color card (color number required) |
| Surface Treatment | Powder coating | Multiple surface treatment processes available: electroplating, anodizing, painting, brushing, polishing, powder spraying, etc. |
| Protection Rating (IP) | IP55 | Customizable higher protection ratings (e.g., IP65) to suit different environmental requirements. |
| Operating Temperature Range | -20℃~+60℃ | Customizable wide temperature range (e.g., -40℃~+80℃, requires additional heat dissipation/insulation design) |
| Humidity Range | ≤95% RH (non-condensing) | — |
| Rated Voltage | AC 600V | Can be adjusted as required (needs to match internal component specifications) |
| Rated Current | 100A | Can be adjusted as required (needs to match internal component specifications) |
| Installation Method | Floor-Standing | Multiple installation methods available: wall-mounted, floor-mounted, embedded, rail-mounted, etc. |
| Heat Dissipation Design | With ventilation holes, fans, heat sinks | Customizable heat dissipation solutions according to requirements |
| Electromagnetic Shielding | Shielding effectiveness ≥60dB | Can be enhanced to ≥80dB (requires additional shielding layer design) |
| Transparent Window | Acrylic material | Customizable window size, position, and explosion-proof windows available |
| Waterproof Sealing Ring Material | EPDM rubber | Sealing ring material can be replaced (e.g., fluororubber for high-temperature scenarios) |
Product Details
|

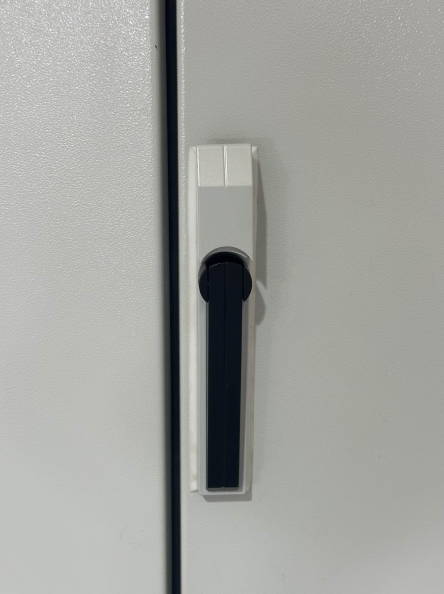

Door Lock Combined with high-strength anti-theft door locks, the safety of internal equipment in the control cabinet can be ensured.
|

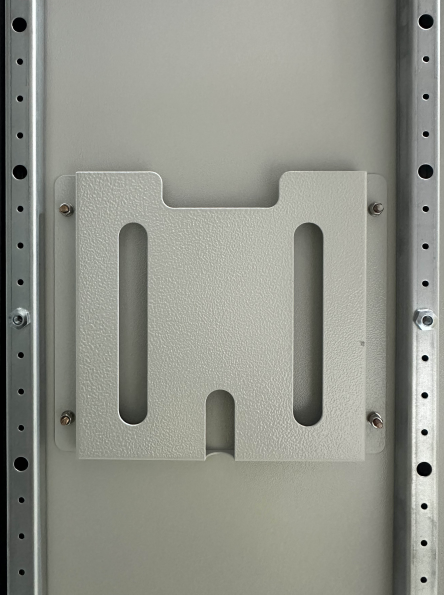

File Box The door is equipped with a built-in document storage compartment, which can flexibly store project supporting drawings and other relevant documents.
|

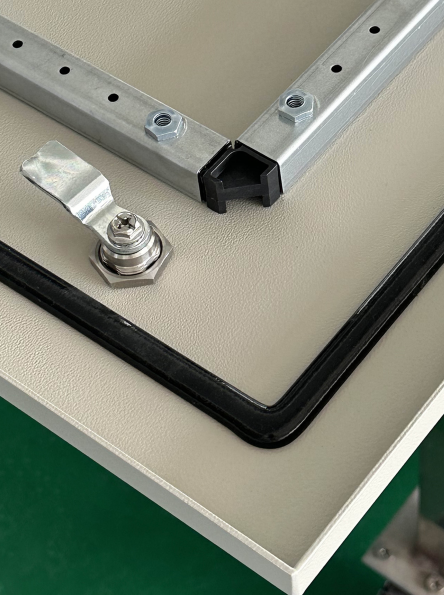

Foaming Each control cabinet's door interior uses high-quality sealing rubber strips, which can create a gap-free seal with the cabinet body when the door is closed, achieving excellent dust and water resistance. |
|

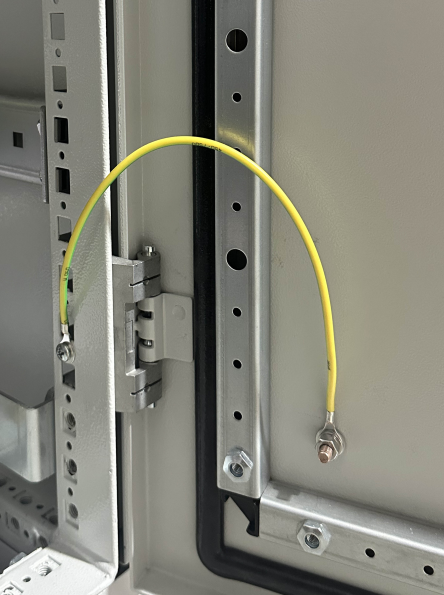

Grounding Wire Ensure the control cabinet can be effectively grounded to reduce the risk of electric leakage from the source.
|

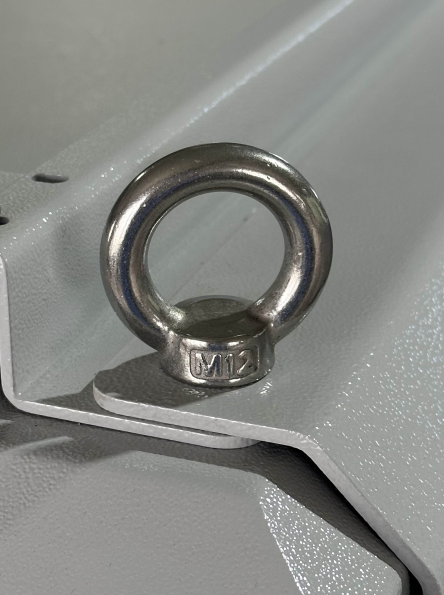

Hanging Ring The thickened and reinforced lifting rings on the top can meet the lifting operation requirements of the control cabinet during transportation and ensure stability and safety throughout the process. |
Powerful Hinges Guarantee that the control cabinet door will not experience jamming or abnormal noise after frequent opening and closing.
|
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Reviews
FAQ
Our services cover full-range manufacturing processes for sheet metal products, including laser cutting, bending, welding, surface treatment, assembly, and testing.
We process mainstream metal sheets such as galvanized steel, cold-rolled steel, stainless steel, and aluminum alloy, accommodating customized thickness requirements from 0.5mm to 10mm.
We offer processes like powder coating, painting, electroplating, anodizing, brushing, and sandblasting. Leveraging our expertise, we recommend suitable surface treatments based on the specific application environment.
Yes, Yinlu supports non-standard customization and production based on provided drawings. Our engineers will optimize the structure during secondary design to deliver more cost-effective solutions.
Our products are used in multiple sectors, including automation equipment, new energy, medical, and telecommunications. Key products include PLC control panels, electrical cabinets, charging pile enclosures, and medical equipment enclosures.
Absolutely. We offer one-stop ancillary services such as silkscreen printing (logos/identifications), assembly (including electrical components), and packaging (customized cartons/wooden crates).
