Freeze Drying Machine
Details
Product Parameters
| FD260 | FD440 | IC550 | IC570 | |
| Size(L*W*H) | 1390mm*1045mm*1020mm | 1530mm*1100mm*1450mm | 1650mm*1350mm*1650mm | |
| Extraction | 25KG | 60KG | 15KG/H(Infinite) | 25KG/H |
| Drawer Loading Volume | 115 Liters | 192 Liters | 980 Liters | 1480L |
| Surface (8 Trays) | 2.8m³ | 3.85m³ | 3.85m³ | 3.85m³ |
| Tray Material | Anodized Aluminum Or Stainless Steel | |||
| Cooling Capacity | 1.5KW | 3KW | No Cooling Capacity | No Cooling Capacity |
| Heating Capacity | — | — | Up To 400 Watt/Tray | Up To 400 Watt/Tray |
| Current Load | Max 6.5KW | Max 9KW | 30KW,Can Be Lowered to 9 KW | 30KW,Can Be Lowered to 9 KW |
| Condensation Temperature | —40℃ | —40℃ | —40℃ | —40℃ |
| Maximum Vacuum | 50 Mtorr | 50 Mtorr | 10 Mtorr | 10 Mtorr |
| Total Weight | 310KG | 430KG | 1120KG | 1750KG |
| Ambient Temperature | +17℃ to +22℃ | +15℃ to +23℃ | — | +17℃ to +22℃ |
Product Details
|

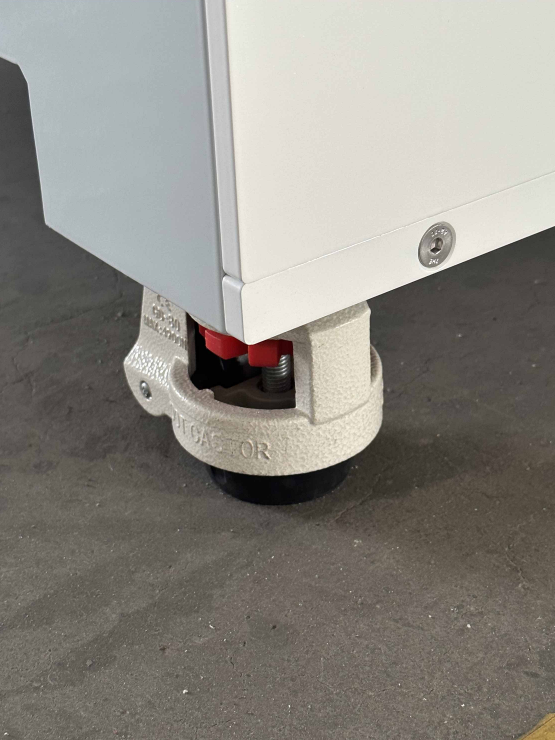

Universal Wheel The bottom is designed with universal wheels, allowing flexible movement of the equipment and featuring a braking function, combining convenience with operational stability.
|

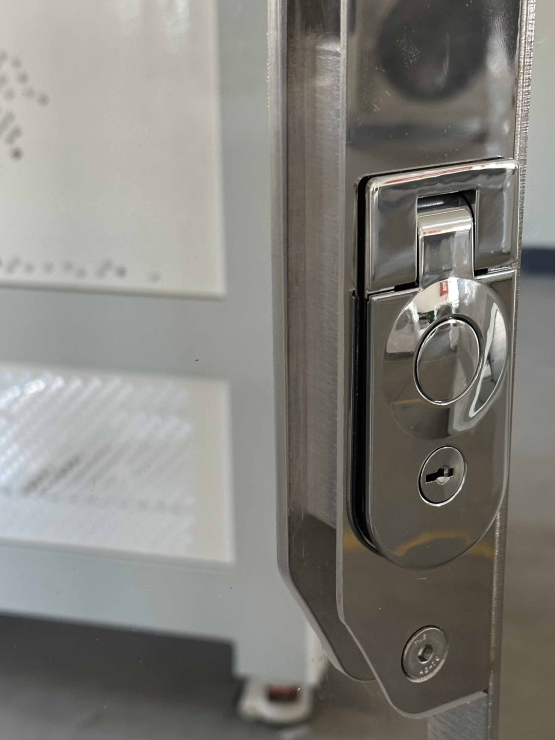

Mirror Plate A mirror door lock is used, which not only enhances the equipment's aesthetic quality but also makes it easy to clean, making it more suitable for the requirements of the food industry.
|
|

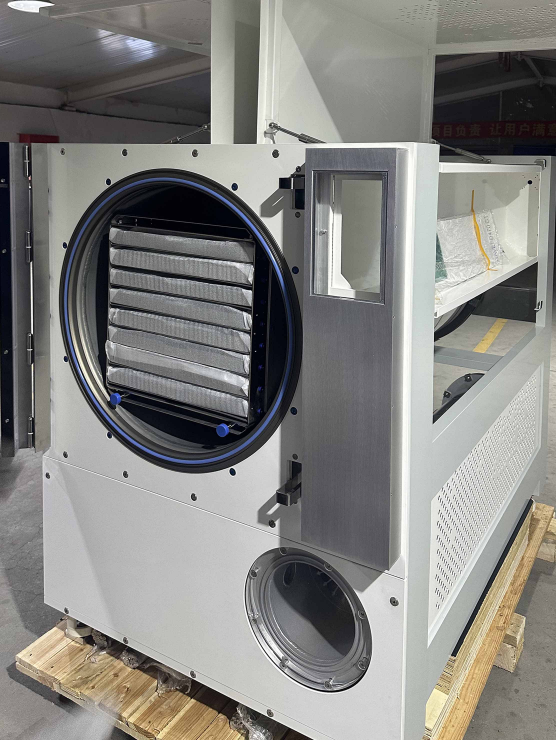

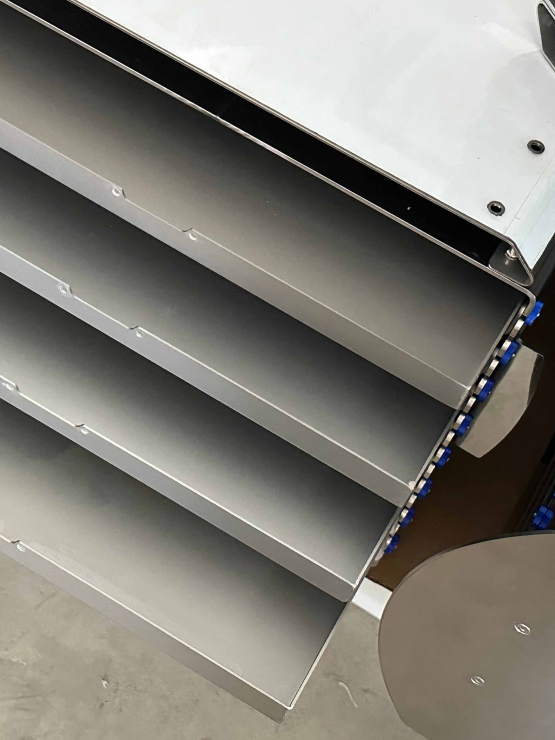

Trays:(Anodized Aluminum) Internal material trays are made of aluminum alloy and undergo anodization, resulting in enhanced hardness and corrosion resistance.
|

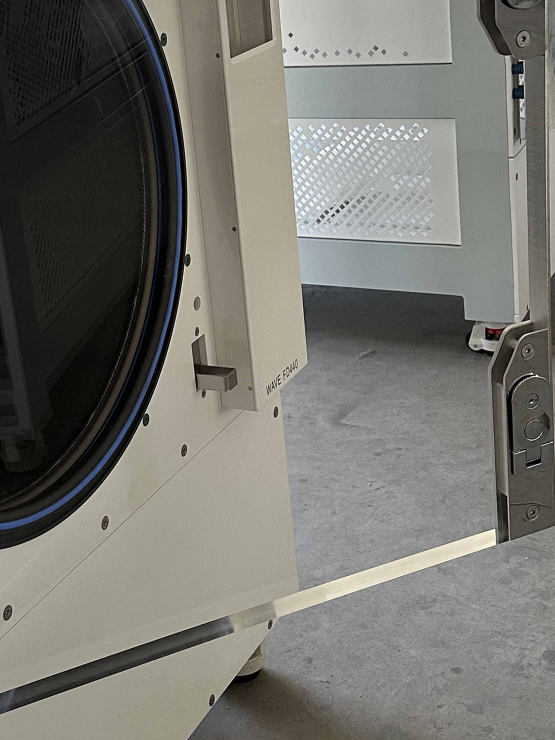

Acrylic Panels The door panel of the freeze dryer is made of acrylic material, offering impact resistance while providing high visibility. |

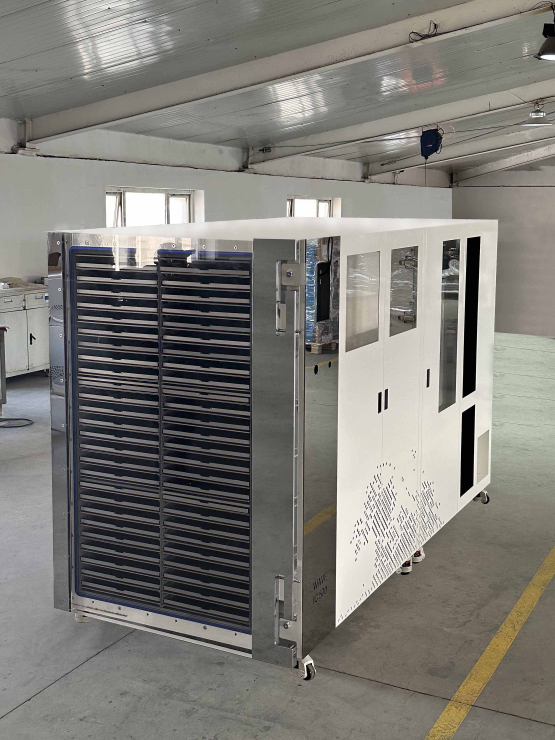

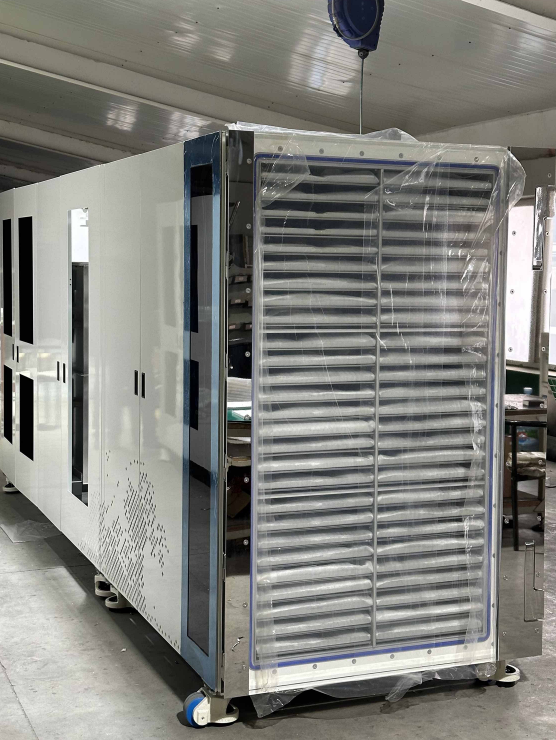

Pictures of all models
|

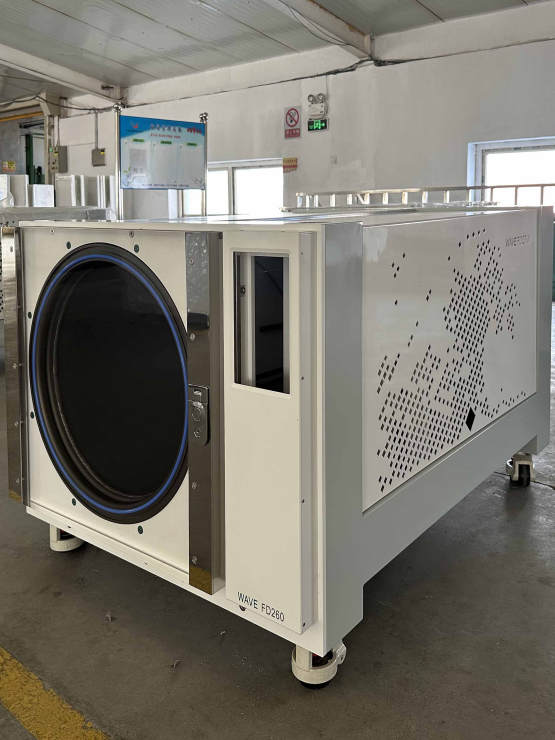

FD260 |

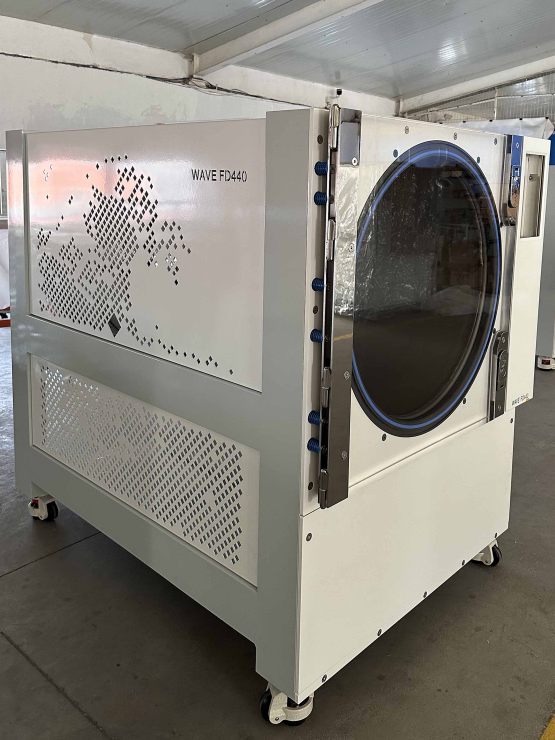

FD440 |
FD470 |
|
FD570 |
FD570 Max |
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Production Process
1. Prototype Design
2. Laser Cutting
3. Bending
4. Welding
5. Polishing
6. Powder Coating
7. Assembly
8. Quality Control
9. Package
Reviews
FAQ
Our services cover full-range manufacturing processes for sheet metal products, including laser cutting, bending, welding, surface treatment, assembly, and testing.
We process mainstream metal sheets such as galvanized steel, cold-rolled steel, stainless steel, and aluminum alloy, accommodating customized thickness requirements from 0.5mm to 10mm.
We offer processes like powder coating, painting, electroplating, anodizing, brushing, and sandblasting. Leveraging our expertise, we recommend suitable surface treatments based on the specific application environment.
Yes, Yinlu supports non-standard customization and production based on provided drawings. Our engineers will optimize the structure during secondary design to deliver more cost-effective solutions.
Our products are used in multiple sectors, including automation equipment, new energy, medical, and telecommunications. Key products include PLC control panels, electrical cabinets, charging pile enclosures, and medical equipment enclosures.
Absolutely. We offer one-stop ancillary services such as silkscreen printing (logos/identifications), assembly (including electrical components), and packaging (customized cartons/wooden crates).
